PHOENIX【PX】Series

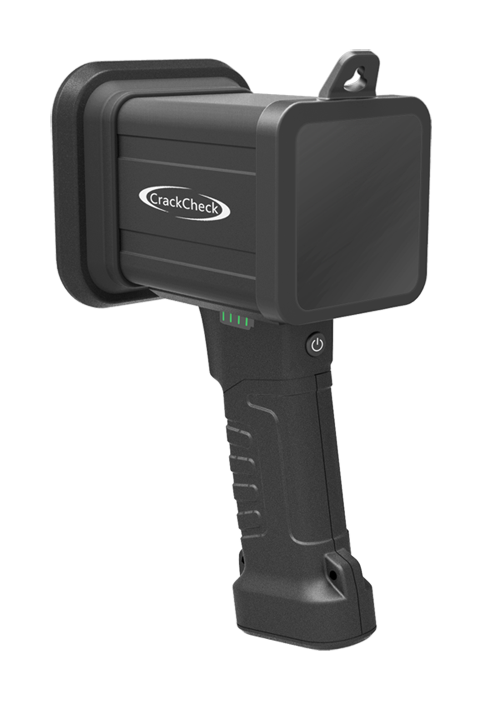

PX-45 Portable LED UV Lamp
Certified to meet ASTM E3022 and Rolls-Royce RRES 90061 Requirements
General Description:
CrackCheck® PX-45 Portable NDT LED UV lamp is a hand-held NDT inspection lamp with white light and UV light emissions as per to ASTM E 3022. This type of lamps all can be equipped with black light filters and the visible light is less than 5 Lux.
PX-45 LED UV lamp can be powered by electrical mains or built-in batteries with battery indicator. First choice for fluorescent inspection,biological polymerization, leaking test, criminal investigation and many other field.

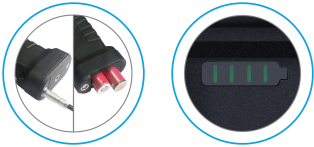

Multiple Charging
Powered by both eletrical mains and built-in batteries.
Power Indicator
The lamp is designed with power indication.
Safe and Pure UV-A
Safe and pure UV-A emissions with peak wavelength of 365-370nm.Negliable visible light to safeguard visual inspection.
Wide and Uniform Beam
Wide coverage area and uniform beam with NO hot spots.
Certified to meet International Standards
ASTM E 3022, ASTM E 1444, ASTM E 1417, ASTM E709, ASTM E 2297. Also compliant with RRES90061 standards.
Optical & Electrical Specification |
|
| Model | PX-45 |
| LED | 3*UV-A LEDs, 1*white light LED |
| Excitation Irradiance(347-382nm) | Aviation Model:~4500μw/cm2 High intensity Model:~5500μw/cm2 |
| Visible light | ＜5Lux |
| Peak Wavelength | 365-370nm |
| Wavelength Drift (at elevated temperature) |
≤5nm |
| Emission Spectrum Full Width at Half Maximum(FWHM) Longest Wavelength at Half Max(LWHM) +/-Width at Half Maximum Full Width at 10% Maximum(FW10%) +/-Width at 10% Maximum |
≤15nm ≤375nm ≤±8nm ≤25nm ≤±12nm |
| Minimum Beam Diameter | 170mm(≥1000μW/cm2 UV-A intensity) 250mm(≥200μW/cm2 UV-A intensity) |
| Minimum Working Distances | WD≤12cm |
| Weight | 820g |
| Power Supply Type | Battery and Mains |
| Battery Type | 2*Rechargeable Lithium Battery(18650) |
| Electrical Mains | AC 100-240V 50/60Hz |
