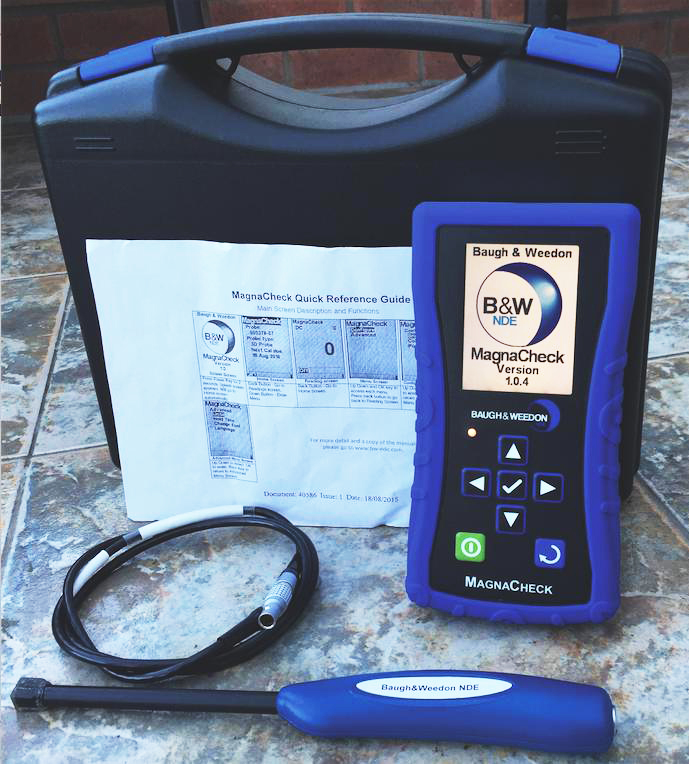

MagnaCheck
Tangential Field Strength Meter
MagnaCheck Data Sheet
| 3D Probe | 1D Probe | |
| Measurement range | To 2000 Gauss | To 1000 Gauss |
| Units | Gauss, mTesla, Ka/m | |
| Measurement modes | DC, AC peak, true RMS | |

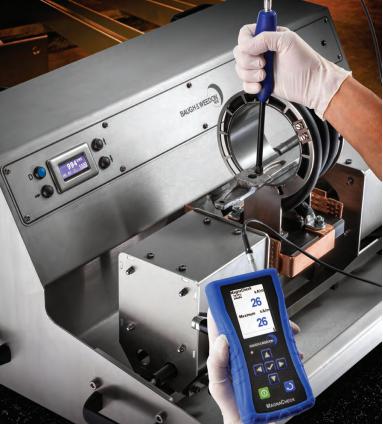

| MPI bench support | True RMS for thyristor switched fields | True RMS and shot time measurement** |
| Peak hold mode | Off, 1, 2, 5 and 10 seconds | |
| Measurement sample rate | 70 samples/second | 500 samples/second |
| Measurement resolution | 0.16 Gauss | 0.1 Gauss |

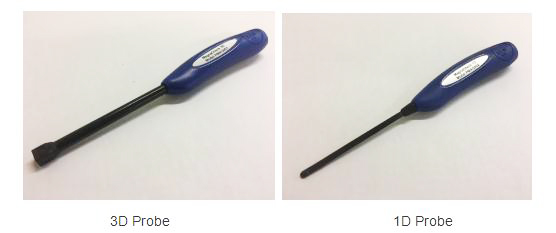

| Probe types | 3D Auto Recognition | 1D Transverse |
| Sensor calibration | Stored digitally in probe | |
| Measurement accuracy | 1% | |
| Standards compliance | ASTM E1444/1444M-16 and EN ISO 9934-3 | |
| Zeroing | Manual zero with null pot supplied | |
| Display type | Colour LCD with selectable backlight | |
| Display size and resolution | 2.8” (70mm) 320x240 pixels | |
| Power | 2 x 1.5V AA batteries. | |
| Typical battery life | In excess of 10 hrs continuous use | |
| Instrument dimensions | 163mm x 80mm x 25mm ( 168mm x 85mm x 30mm with protective rubber boot ) | |
| Instrument weight | 350g ( 0.77 lb ) including batteries | |
